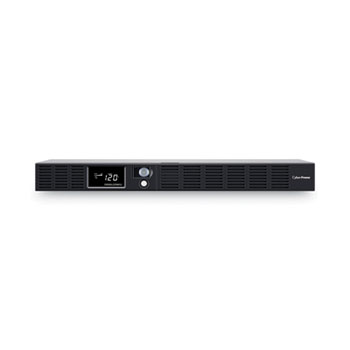

This 1U rackmount uninterruptible power supply (UPS) provides battery backup power and surge protection for connected equipment including servers, network devices, workstations, and telecom installations. Additional features include automatic voltage regulation (AVR) to correct minor fluctuations in utility power without switching to battery mode and a multifunction LCD to keep you informed about power conditions. The UPS also offers remote management capabilities with an optional network management card. The Smart App LCD OR500LCDRM1U comes with a three-year warranty (including coverage of batteries) and a $300,000 lifetime connected equipment guarantee.
Warranty: Manufacturer's limited three-year warranty.
Specifications
|
| Global Product Type |
Backup Systems |
| System VA |
500 VA |
| Number of Outlets/Type |
4 UPS/Surge,2 Surge Only |
| Joules Of Surge Protection |
1,150 J |
| Protection Type |
Power |
| Backup Time at Half Load |
12 min @ 150 W |
| Automatic Voltage Regulation (AVR) |
Yes |
| Battery Recharge Time |
8 h |
| Connected Equipment Guarantee/Warranty |
Lifetime $300,000 |
| Backup Time at Full Load |
3 min @ 300 W |
| Jacks/Ports |
RJ11,RJ45 |
| Connector/Port/Interface |
Coaxial,NEMA 5-15R,USB |
| Noise Protection |
EMI/RFI Noise Suppression |
| Number of Outlets |
6 |
| Diagnostics/Alarm/Status Light |
Alarm,LED |
| React Time |
8 ms |
| Cord Length |
10 ft |
| Color(s) |
Black |
| Width |
17.05" |
| Height |
1.75" |
| Depth |
9.25" |
| Backup Systems Alarm(s) |
Audible |
| Input Frequency |
57-63 Hz |
| Model Name/Number |
Smart App LCD UPS Series OR500LCDRM1U |
| Weight |
18 lbs |
| Package Includes |
(2) Rack Mount Brackets,(1) USB A+B Type Cable,User Manual |
| Compliance Standards |
cUL,Energy Star Rated,FCC Class B Certified,RoHS,UL Listed |
| Pre-Consumer Recycled Content Percent |
0% |
| Post-Consumer Recycled Content Percent |
0% |
| Total Recycled Content Percent |
0% |
